• Year
  • 1976 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 271830

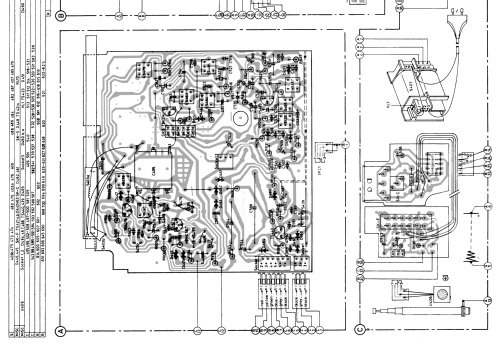

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 6x1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Karstadt PH 8242 /59 - Philips; Eindhoven tubes
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 325 x 200 x 90 mm / 12.8 x 7.9 x 3.5 inch
  • Notes
  • Produced by Philips for Karstadt.

  • Net weight (2.2 lb = 1 kg)
  • 2.225 kg / 4 lb 14.4 oz (4.901 lb)
  • Author
  • Model page created by Manuel Albano Neves. See "Data change" for further contributors.
