Konzertmeister 953 22RH953

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83542

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 58

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 12 W (18 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Konzertmeister 953 22RH953 - Philips; Eindhoven tubes

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 577 x 111 x 376 mm / 22.7 x 4.4 x 14.8 inch

• Notes

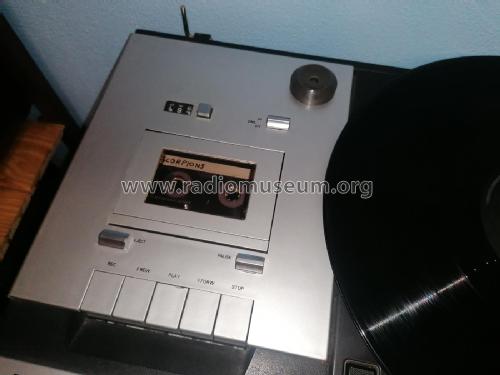

• Eingebauter Plattenspieler 22GC027 und Cassettenrecorder N2503, 2 externe LS-Boxen 22RH443.

  Das Typschild gibt Made in Holland an, während die Buchstaben PL vor der Seriennr. auf Philips Leuven (Belgien) hinweisen.

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.

• Other Models

• Here you find 5233 models, 4365 with images and 3445 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
