Popmaster L1WZ33T
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1966/1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 264001

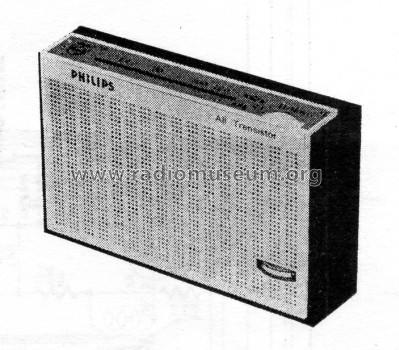

Philips model L1WZ33T from service sheet.
Service manual cover.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / AA: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Popmaster L1WZ33T - Philips Australia
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 5.065 x 3.375 x 1.375 inch / 129 x 86 x 35 mm
- Notes
-
Philips Model L1WZ33T "Popmaster"
A 6-transistor portable radio complete with handsome, detachable carrying case with adjustable hand strap. Slide-out base plate for easy battery replacement. Personal listening earpiece, on/off volume, attractive styling with linear dial. (FROM MINGAY'S PRICE SERVICE)
- Price in first year of sale
- 33.95 AUS $
- Mentioned in
- Mingay's Price Service (Feb 1967.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Philips Service Notes, Aug 1966.)
- Literature/Schematics (2)
- J.R. Publications Transistor Radio Service Handbook (Group C5, 1968, Page P37.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
