• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 183740

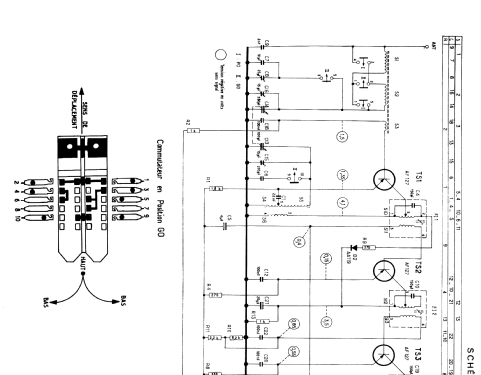

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF127 AF127 AF127 AC125 AC125 AC128 AC128

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4,5 + 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch

• Power out
• 0.25 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: L3F30T - Philips France; Paris

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 254 x 142 x 65 mm / 10 x 5.6 x 2.6 inch

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
