L3F96T

L3F96T; Philips France; (ID = 2000600) Radio

L3F96T; Philips France; (ID = 2000601) Radio

L3F96T; Philips France; (ID = 2000602) Radio

L3F96T; Philips France; (ID = 2000603) Radio

L3F96T; Philips France; (ID = 2000604) Radio

L3F96T; Philips France; (ID = 2000605) Radio

L3F96T; Philips France; (ID = 2000606) Radio

L3F96T; Philips France; (ID = 2000607) Radio

L3F96T; Philips France; (ID = 2000608) Radio
Use red slider bar for more.
L3F96T; Philips France; (ID = 2000600) Radio

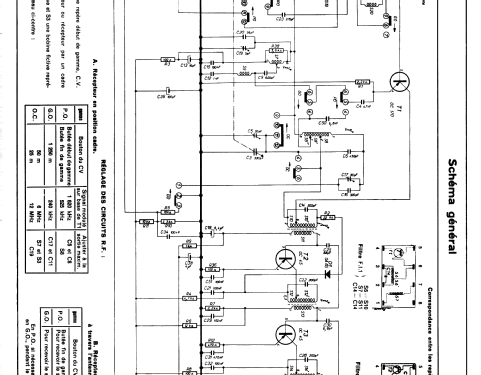

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: L3F96T - Philips France; Paris
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 185 x 100 mm / 10.2 x 7.3 x 3.9 inch
Notes

See also Radiola model RA395T and Siera model SA6131T.

Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Literature/Schematics (1) Le grand livre de la TSF (Doctsf Ref 24154)

Model page created by Bernhard Nagel. See "Data change" for further contributors.
