• Year
  • 1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 152065

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 2 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.8 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

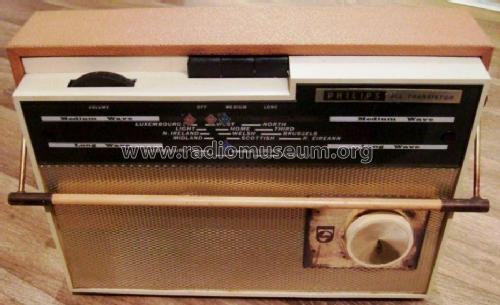

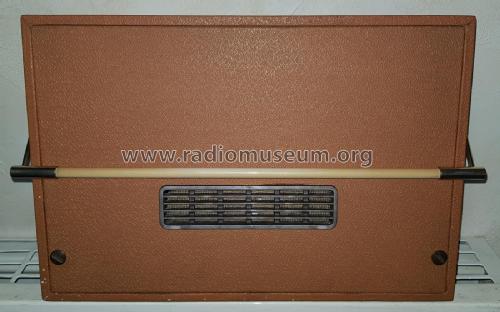

  • Model: L3G04T - Philips Electrical, Lamps,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • Electrically similar to model L3G03T except that AF transistors types are changed.
  • Price in first year of sale
  • 19.00 GBP
  • Source of data
  • -- Schematic
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book

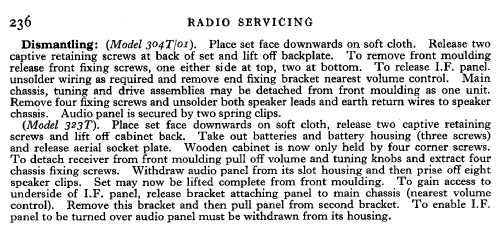

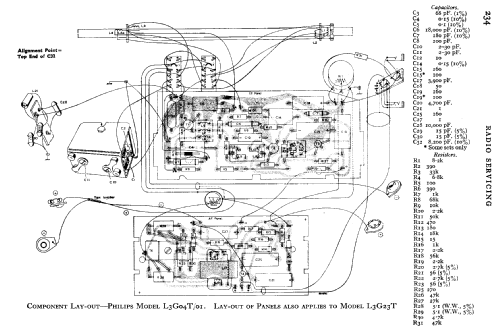

  • Literature/Schematics (1)
  • ERT Sheet 1340 & Trader Sheet 1544
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
