Majorca L3G36T
Philips Electrical, Lamps, Industrial - Miniwatt; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Philips Electrical, Lamps, Industrial - Miniwatt; London
- Year
- 1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 135756

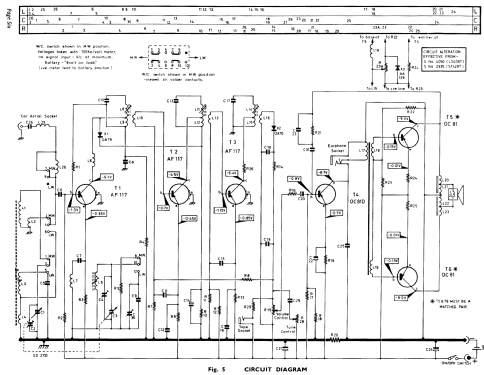

Aus dem Servicemanual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / PP9: 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Majorca L3G36T - Philips Electrical, Lamps,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 11 x 7.5 x 3 inch / 279 x 191 x 76 mm
- Notes
-
A battery powered portable six transistor radio covering the MW (187-555 metres) and LW (1215-2000 metres) bands, housed in a wooden cabinet covered in brown flecked rexine. Three sockets for car aerial, tape recorder and earphone. Loudspeaker 6 x 4 inch.
The same chassis is fitted into the Stella ST428T model.
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- Literature/Schematics (1)
- - - Manufacturers Literature (Service Information for the Philips L3G36T and Stella ST428T dated November 1964)
- Literature/Schematics (2)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1734 dated 17 December 1965)
- Literature/Schematics (3)
- Radio And Television Servicing books (R&TVS)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
