All Transistor L3G95T (395T)
Use red slider bar for more.
Philips Electrical,: All Transistor L3G95T [Radio] ID = 1616867 933x846

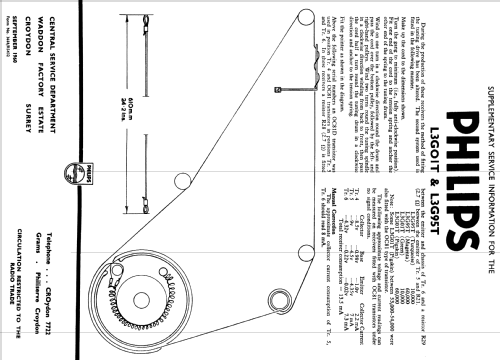

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1960 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: OC44 OC45 OC45 OC78D or. OC81D OC78 or. OC81 OC78 or. OC81 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Dry Batteries / 9 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: All Transistor L3G95T - Philips Electrical, Lamps, |
| Material | Plastics (no bakelite or catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Notes | Chassis similar to model L3G91T.
MW: 200 - 500 m |
| Source of data | Radio And Television Servicing books (R&TVS) |
Model page created by Keith Staines. See "Data change" for further contributors.
