L3W22T/15 (322T/15)

L3W22T/15 ; Philips Electrical, (ID = 727463) Radio

L3W22T/15 ; Philips Electrical, (ID = 727464) Radio

L3W22T/15 ; Philips Electrical, (ID = 1330430) Radio

L3W22T/15 ; Philips Electrical, (ID = 1330433) Radio

L3W22T/15 ; Philips Electrical, (ID = 1330434) Radio

L3W22T/15 ; Philips Electrical, (ID = 1330436) Radio
L3W22T/15 ; Philips Electrical, (ID = 275114) Radio L3W22T/15 ; Philips Electrical, (ID = 1376839) Radio
Use red slider bar for more.
L3W22T/15 ; Philips Electrical, (ID = 275114) Radio
Philips Electrical,: L3W22T/15 [Radio] ID = 275114 870x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model L3W22T/15 (322T/15), Philips Electrical, Lamps, Industrial - Miniwatt; London:

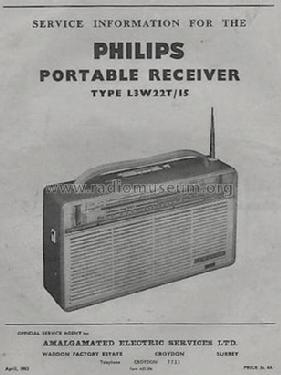

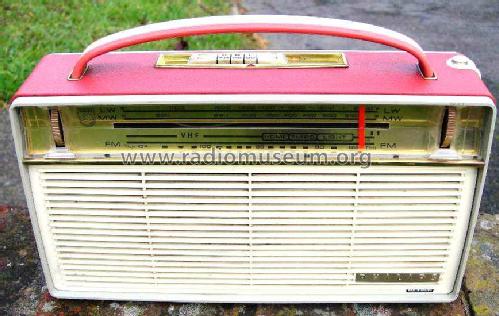

My Philips L3W22T/15 AM/FM transistor radio built for the UK market in Austria. Now fully restored.

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 OC75 OC75 OC74 OC74
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker
Power out 0.48 W (unknown quality)
from Radiomuseum.org Model: L3W22T/15 - Philips Electrical, Lamps,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 11 x 6 x 2.875 inch / 279 x 152 x 73 mm
Notes Portable radio with sockets for car aerial & earphone. Colours Red/Ivory or Green/Ivory denoted by suffixes /15L & /15F respectively. Price £19.18s.1d. plus tax.
Net weight (2.2 lb = 1 kg) 3 lb 8 oz (3.5 lb) / 1.589 kg
Price in first year of sale 20.00 GBP

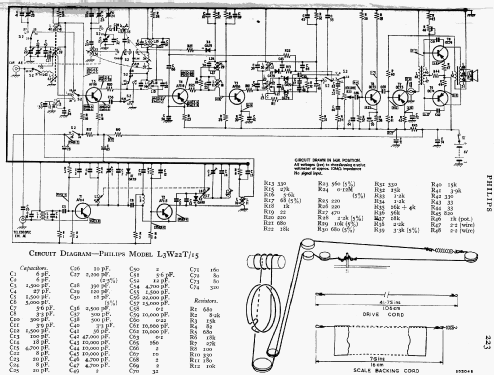

Source of data -- Schematic
Literature/Schematics (1) Radio And Television Servicing books (R&TVS) (Trader Sheet 1614.)

Model page created by Keith Staines. See "Data change" for further contributors.
