• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30211

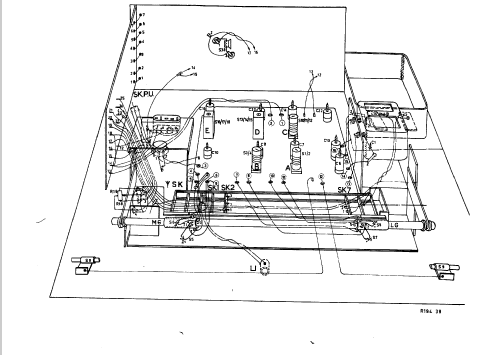

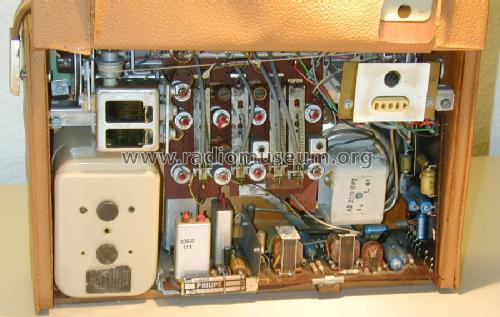

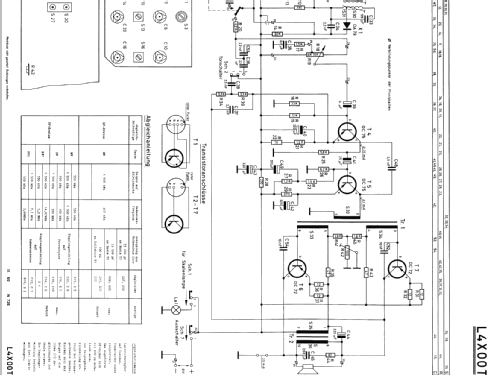

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 or. 2N371 OC45 OC45 OC75 OC75 OC74 or. OC72 OC74 or. OC72

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

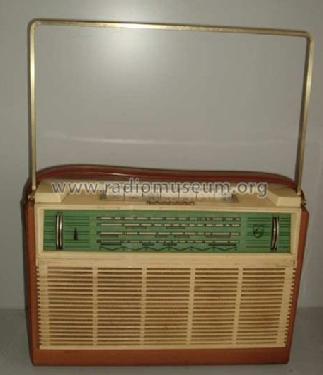

• Model: All Transistor L4X00T - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 311 x 212 x 101 mm / 12.2 x 8.3 x 4 inch

• Notes
• Coverage:
  LW (750-2000m),
  MW (185-580m),
  SW1 19.36-39.4m),
  SW2 (39.4-83.3m).

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
