• Year
  • 1934 ?
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 180150

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Wave bands
  • - without
  • Details
  • Power: Charger for A-Batteries
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

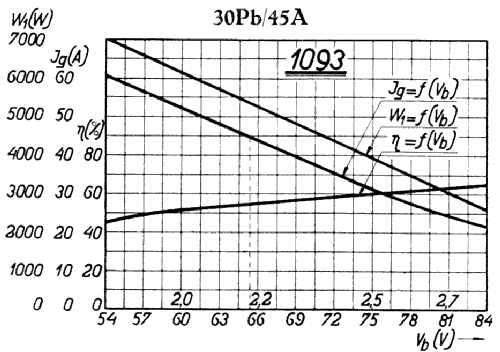

  • Model: Ladegleichrichter 30Pb/45A - Philips; Eindhoven tubes
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 510 x 710 x 495 mm / 20.1 x 28 x 19.5 inch
  • Notes
  • Ladegerät für bis zu 30 Bleizellen, bis zu 45 A. Mit eingebautem selbsttätigem Ladeschalter und Schalter für Nachladebetrieb mit bis hinab zu 1/8 * IN.
    Lieferbar für alle Spannungen unter 500 V, Dreiphasenanschluss.
  • Net weight (2.2 lb = 1 kg)
  • 240 kg / 528 lb 10.1 oz (528.634 lb)
  • Literature/Schematics (1)
  • Philips-Katalog, 1934
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
