• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1971

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 137259

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

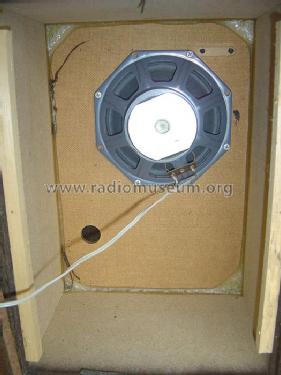

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Lautsprecherbox 22RH412 /11Z - Philips; Eindhoven tubes

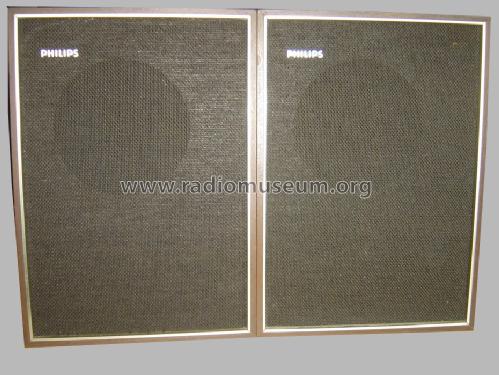

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 250 x 350 x 185 mm / 9.8 x 13.8 x 7.3 inch

• Notes
• Doppelkonuslautsprecher, Belastbarkeit 10/15 Watt,
  Impedanz 4 Ohm.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
