• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1964

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 96544

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC88 E82CC EF86 EF95

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

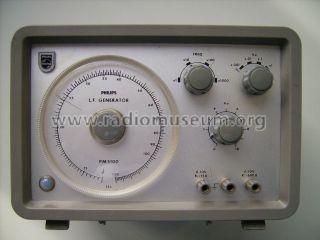

• Model: LF -Generator PM5100 /01 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 233 x 165 x 140 mm / 9.2 x 6.5 x 5.5 inch

• Notes
• 14 Hz - 150 kHz in 4 Bereichen, Ausgangspegel max. 10 V; nur Sinussignal.
  Der Originalpreis gilt für 1965.

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Price in first year of sale
• 565.00 DM

• Mentioned in
• Funkschau (7/1964, S. 182)

• Author
• Model page created by Pius Steiner. See "Data change" for further contributors.
