For model LX381B /05, Philips; Eindhoven (tubes international!); Miniwatt:
Gerät steht in der Sammlung "Philips Historische Producten" in Eindhoven.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1949/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: DK40 DF91 DAF91 DAF91 DL41 DL41
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details

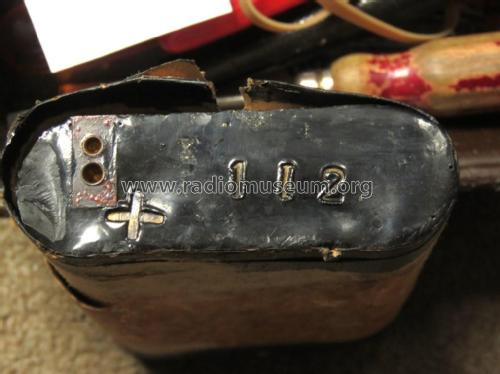

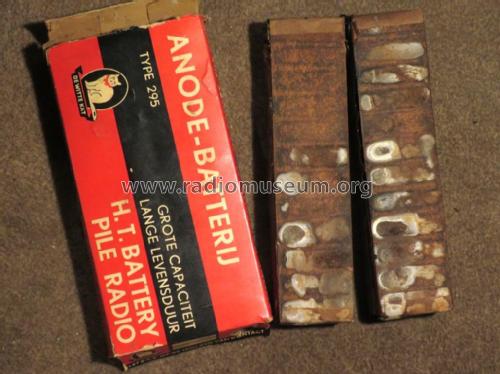

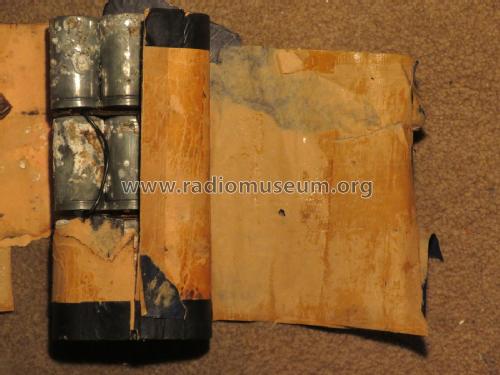

Power type and voltage Dry Batteries / 1.5 & 2 x 45 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.42 W (unknown quality)
from Radiomuseum.org Model: LX381B /05 - Philips; Eindhoven tubes
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 357 x 250 x 148 mm / 14.1 x 9.8 x 5.8 inch
Notes

Chassis like BX484B.

Net weight (2.2 lb = 1 kg) 4.4 kg / 9 lb 11.1 oz (9.692 lb)
Price in first year of sale 195.00 Hfl
Collectors' prices
Source of data Technisch- Commercieel - Radio Vademecum Staleman

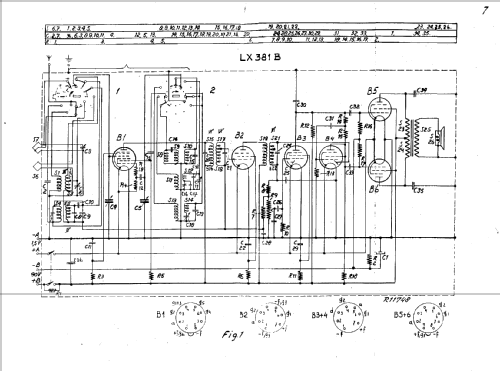

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
