• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1968–1973 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 131893

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

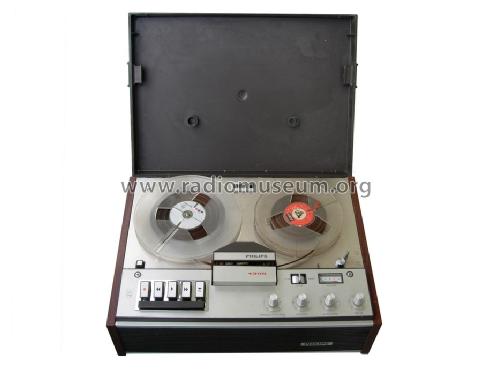

• Model: N4308 /57 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 405 x 140 x 295 mm / 15.9 x 5.5 x 11.6 inch

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)
