For model Discoverer Manual Control Console Magnascope 11613 Ch= 1161, Philips Australia:

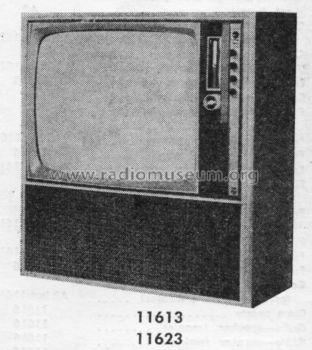

Philips model 11613 from service manual front cover.

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1966 Category: Television Receiver (TV) or Monitor
Valves / Tubes 14: 6ES8 6HG8 6EH7 6U9 6X9 6Y9 6CS6 6GW8 6GV8 6JW8 6CM5 6AL3 1S2 A65-11W
Semiconductors (the count is only for transistors) 2: AF117N AF117N OA91 OA91 OA91 OA91 OA91 OA91 AA119 AA119 OA210 OA210
Main principle Superhet with RF-stage; ZF/IF 36500/5500 kHz; 2 AF stage(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220; 240; 255 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: Discoverer Manual Control Console Magnascope 11613 Ch= 1161 - Philips Australia
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

65 cm B&W TV set tuning the 13 standard Australian VHF channels.

Uses the Australian Philips 11 Series chassis.

Source of data - - Manufacturers Literature
Literature/Schematics (1) - - Manufacturers Literature
Literature/Schematics (2) JR Television Service Handbook Page 22A

Model page created by Stuart Irwin. See "Data change" for further contributors.
