Discoverer 25" Remote Control Magnascope 11623 Ch= 1162

Discoverer 25' Remote Control Magnascope 11623 Ch= 1162; Philips Australia (ID = 1975963) Television

Discoverer 25' Remote Control Magnascope 11623 Ch= 1162; Philips Australia (ID = 1975964) Television

Discoverer 25' Remote Control Magnascope 11623 Ch= 1162; Philips Australia (ID = 1975965) Television

Discoverer 25' Remote Control Magnascope 11623 Ch= 1162; Philips Australia (ID = 1975966) Television

Discoverer 25' Remote Control Magnascope 11623 Ch= 1162; Philips Australia (ID = 1975967) Television

Discoverer 25' Remote Control Magnascope 11623 Ch= 1162; Philips Australia (ID = 1975968) Television

Discoverer 25' Remote Control Magnascope 11623 Ch= 1162; Philips Australia (ID = 1975969) Television
Discoverer 25' Remote Control Magnascope 11623 Ch= 1162; Philips Australia (ID = 1975960) Television Discoverer 25' Remote Control Magnascope 11623 Ch= 1162; Philips Australia (ID = 1193278) Television
Use red slider bar for more.
Discoverer 25' Remote Control Magnascope 11623 Ch= 1162; Philips Australia (ID = 1975960) Television
Philips Australia: Discoverer 25" Remote Control Magnascope 11623 Ch= 1162 [Television] ID = 1975960 1291x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Discoverer 25" Remote Control Magnascope 11623 Ch= 1162, Philips Australia:
Image supplied by Andrew McCallum.

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1966 Category: Television Receiver (TV) or Monitor
Valves / Tubes 14: 6ES8 6HG8 6EH7 6U9 6X9 6Y9 6CS6 6GW8 6GV8 6JW8 6CM5 6AL3 1S2 A65-11W
Semiconductors (the count is only for transistors) 2: AF117N AF117N OA91 OA91 OA91 OA91 OA91 OA91 AA119 AA119 OA210 OA210
Main principle Superhet with RF-stage; ZF/IF 36500/5500 kHz; 2 AF stage(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220; 240; 255 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: Discoverer 25" Remote Control Magnascope 11623 Ch= 1162 - Philips Australia
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 29 x 17 x 32 inch / 737 x 432 x 813 mm
Notes

65 cm B&W TV set tuning the 13 standard Australian VHF channels. This model has a wired remote control and a motorized tuner.

Uses the Australian Philips 11 Series Chassis.

Price in first year of sale 291.90 Aus$
Source of data - - Manufacturers Literature

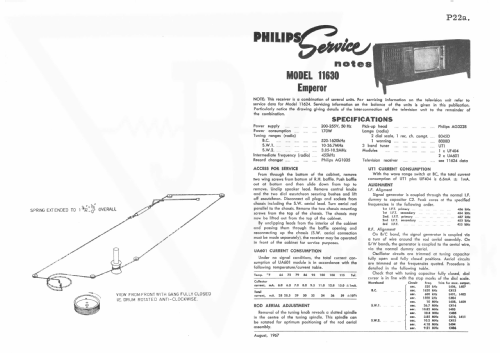

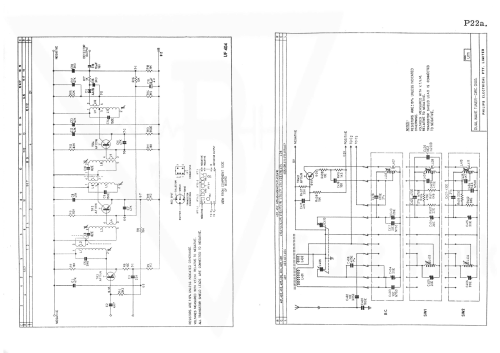

Literature/Schematics (1) JR Television Service Handbook Page P22A

Model page created by Stuart Irwin. See "Data change" for further contributors.
