Malibu Transistor 7 PS6

Malibu Transistor 7 PS6; Philips Australia (ID = 1832096) Radio Malibu Transistor 7 PS6; Philips Australia (ID = 1832097) Radio
Use red slider bar for more.

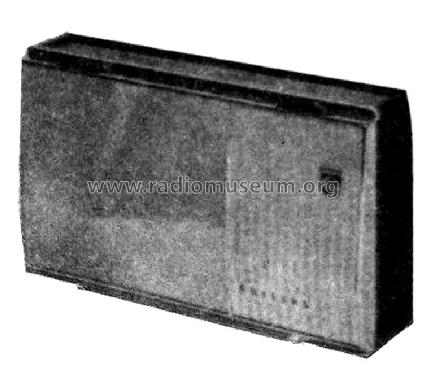

Malibu Transistor 7 PS6; Philips Australia (ID = 1832096) Radio
Philips Australia: Malibu Transistor 7 PS6 [Radio] ID = 1832096 768x664
Select picture or schematic to display from thumbnails on the right and click for download.
For model Malibu Transistor 7 PS6, Philips Australia:

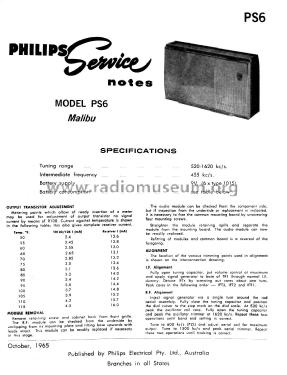

Source: Philips Service notes for the Malibu PS6 MW receiver, taken from ebay.com.au #161160647537

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF117N AF117N AF117N AC127 AC126 AC127 AC128 AA119
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Malibu Transistor 7 PS6 - Philips Australia
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6.75 x 4.25 x 1.75 inch / 171 x 108 x 44 mm
Notes

Comes with a carrying case with shoulder strap.



Price in first year of sale 49.95 AUS $
Mentioned in Philips Electrical Pty. Ltd. Australia, Service Notes, Oct. 1965
Literature/Schematics (1) - - Manufacturers Literature (Philips Service Notes, October 1965.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Group C2, 1965, Page P33.)
