Megaphil 1 T2773

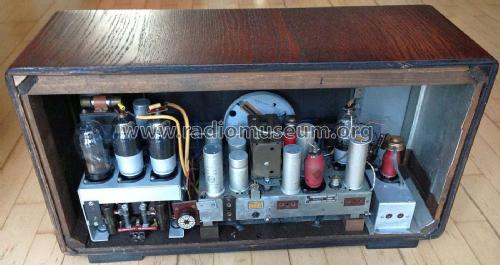

Megaphil 1 T2773; Philips akc. spol., (ID = 1784351) Radio Megaphil 1 T2773; Philips akc. spol., (ID = 1784352) Radio
Use red slider bar for more.
Megaphil 1 T2773; Philips akc. spol., (ID = 1784351) Radio
Philips akc. spol.,: Megaphil 1 T2773 [Radio] ID = 1784351 1400x755
Select picture or schematic to display from thumbnails on the right and click for download.
For model Megaphil 1 T2773, Philips akc. spol., Praha-Hloubetin:
Picture courtesy of guest Petr Pacal

Country:  Czechoslovakia
Manufacturer / Brand:  Philips akc. spol., Praha-Hloubetin
Year: 1941 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECH4 ECH4 EBL1 EF9 EBL1 EBL1 AZ4
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110;125;145;220;245 Volt
Loudspeaker
Power out 3 W (undistorted)
from Radiomuseum.org Model: Megaphil 1 T2773 - Philips akc. spol., Praha-
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 634 x 355 x 225 mm / 25 x 14 x 8.9 inch
External source of data Information courtesy of guest Petr Pacal

Model page created by John Kusching. See "Data change" for further contributors.
