• Year
  • 1974/1975
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 222602
    • alternative name: Radio Corp.of Australia

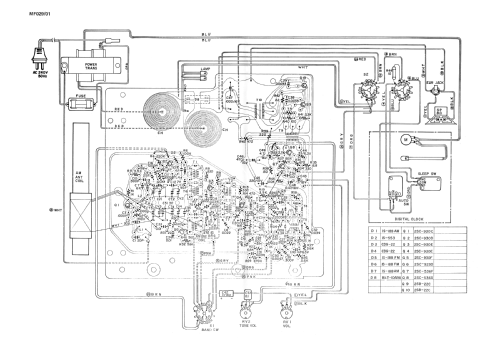

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 0.9 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: MF029 - Astor brand, Radio Corporation
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes
  • Digital clock radio with a mechanical flip display. This model is similar in appearance to the Astor Model MF029 /01 but does not have FM.

    MADE IN JAPAN for Astor (Radio Corporation), a subsidiary of Philips Australia.

  • Price in first year of sale
  • 59.95 AUS $
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Service manual for Astor models MF029 and MF029 /01 (Issued by Philips Australia), June 1976.)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
