• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1967/1968

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 79643

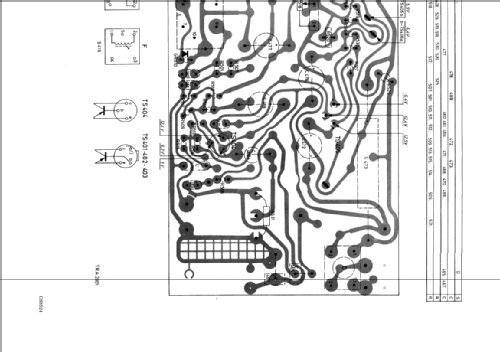

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF126 AF126 AF126 AC127 AC128 AD161 AD162 AA119 AA119 AA119

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2.8 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: 22RN384 /00 - Philips; Eindhoven tubes

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 177 x 37 x 57 mm / 7 x 1.5 x 2.2 inch

• Notes

• Wave bands:
  LW: 150 - 380 kHz
  MW: 512 - 1622 kHz

  See also Jeep 22RN384 /22.

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
