Mini Süper

Mini Süper ; Philips TURKEY ; (ID = 1010797) Radio
Use red slider bar for more.
Mini Süper ; Philips TURKEY ; (ID = 1010797) Radio

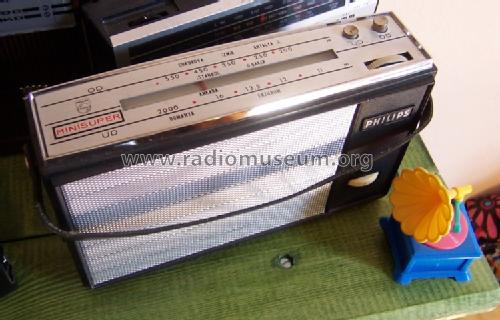

Philips TURKEY ;: Mini Süper [Radio] ID = 1010797 750x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mini Süper, Philips TURKEY ; Istanbul

Country:  Turkey
Manufacturer / Brand:  Philips TURKEY ; Istanbul
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF127 AF127 AF127 AC127 AC127 AC132 AC132
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Mini Süper - Philips TURKEY ; Istanbul
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Literature/Schematics (1) - - Data from my own collection

Model page created by Emil Atbas. See "Data change" for further contributors.
