• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1969/1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6958

• • Brand: Deutsche Philips-Ges.

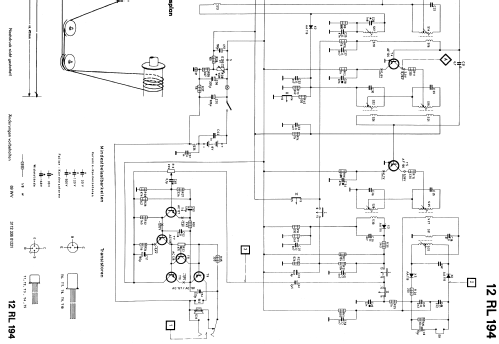

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF124 AF124 AF126 AF126 AF126 AC127 AC127 AC128 AC128 AC128 AA119 AA119 AA119 AA119 AA119

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / C: 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Mistral 12RL194 - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 200 x 100 x 47 mm / 7.9 x 3.9 x 1.9 inch

• Notes

• Im Handbuch VDRG 1969/1970 ist als zweiter Transistor ein AF125 verbaut.

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Source of data
• Handbuch VDRG 1969/1970 / Radiokatalog Band 1, Ernst Erb
