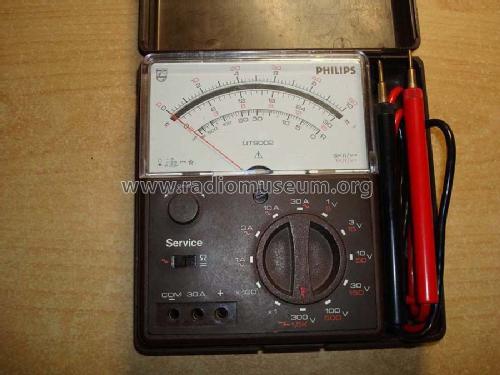

Multimeter UTS002; Philips; Eindhoven (ID = 1180662) Equipment
Philips; Eindhoven: Multimeter UTS002 [Equipment] ID = 1180662 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multimeter UTS002, Philips; Eindhoven (tubes international!); Miniwatt:
Vendu

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1980 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 2x 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Multimeter UTS002 - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 105 x 130 x 38 mm / 4.1 x 5.1 x 1.5 inch

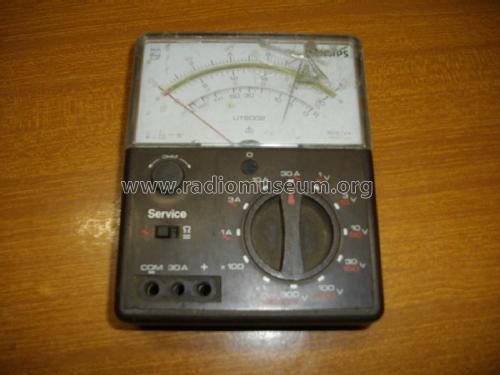

Notes Philips analog multimeter UTS002.

Measuring ranges:
AC Volt: 5 - 15 - 50 - 150 - 500 - 1500 V
DC Volt: 1 - 3 - 10 - 30 - 100 - 300 V
AC Ampere: 1 - 3 - 10 - 30 A
DC Ampere: 1 - 3 - 10 - 30 A
Ohm: x1 - x100, 0 - 1000 Ohm.

Switch "Service" for DC/Ohm and AC operation. Calibration wheel for Ohm.
Source of data - - Data from my own collection

Model page created by Ervé Leclercq. See "Data change" for further contributors.
