Multistandard 12M5860/1 Ch= TX3F

Multistandard 12M5860/1 Ch= TX3F; Philips France; (ID = 2119865) Television Multistandard 12M5860/1 Ch= TX3F; Philips France; (ID = 2119905) Television
Multistandard 12M5860/1 Ch= TX3F; Philips France; (ID = 2119868) Television Multistandard 12M5860/1 Ch= TX3F; Philips France; (ID = 2119866) Television
Multistandard 12M5860/1 Ch= TX3F; Philips France; (ID = 2119867) Television Multistandard 12M5860/1 Ch= TX3F; Philips France; (ID = 2125665) Television
Use red slider bar for more.

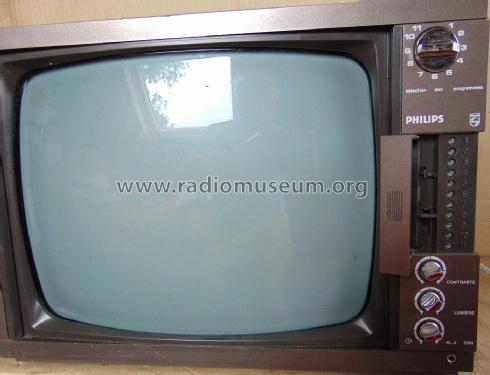

Multistandard 12M5860/1 Ch= TX3F; Philips France; (ID = 2119865) Television
Philips France;: Multistandard 12M5860/1 Ch= TX3F [Television] ID = 2119865 1400x1071
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multistandard 12M5860/1 Ch= TX3F, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1984 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A31-324W
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details

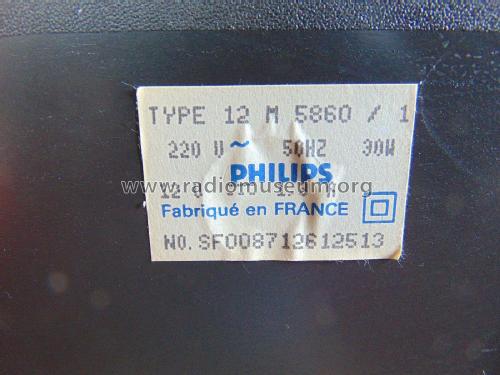

Power type and voltage Line / Batteries (any type) / 220 / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: Multistandard 12M5860/1 Ch= TX3F - Philips France; Paris
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 345 x 250 x 300 mm / 13.6 x 9.8 x 11.8 inch
Notes

Téléviseur multistandard, couvrant les bandes suivantes :

  • VHF, standard B, bandes I et III
  • VHF, standard L', bandes I et III
  • UHF, standard G, bandes IV et V
  • UHF, standard L, bandes IV et V

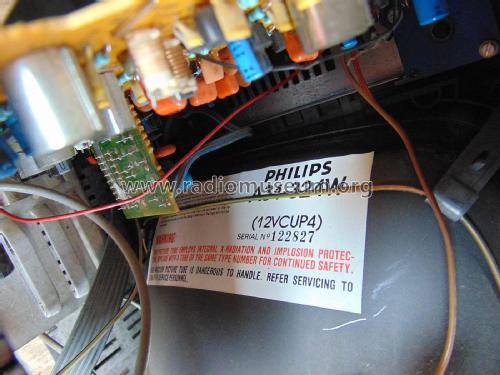

Le tube image est un A31-324W / 12VCUP4.

Net weight (2.2 lb = 1 kg) 5.6 kg / 12 lb 5.4 oz (12.335 lb)

Model page created by Manfred Rathgeb. See "Data change" for further contributors.
