Music Alarm Clock HR 5588 /00

Music Alarm Clock HR 5588 /00; Philips France; (ID = 2244289) Radio Music Alarm Clock HR 5588 /00; Philips France; (ID = 2244610) Radio
Music Alarm Clock HR 5588 /00; Philips France; (ID = 2244611) Radio Music Alarm Clock HR 5588 /00; Philips France; (ID = 2244612) Radio
Music Alarm Clock HR 5588 /00; Philips France; (ID = 2244726) Radio Music Alarm Clock HR 5588 /00; Philips France; (ID = 2244727) Radio
Music Alarm Clock HR 5588 /00; Philips France; (ID = 2244728) Radio Music Alarm Clock HR 5588 /00; Philips France; (ID = 2244729) Radio
Use red slider bar for more.

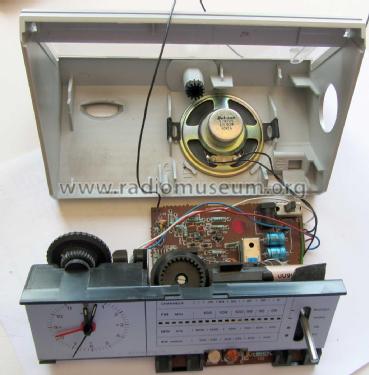

Music Alarm Clock HR 5588 /00; Philips France; (ID = 2244289) Radio
Philips France;: Music Alarm Clock HR 5588 /00 [Radio] ID = 2244289 1400x1241
Select picture or schematic to display from thumbnails on the right and click for download.
For model Music Alarm Clock HR 5588 /00, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1995 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: BF494 BF494 BC338 LM1868
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.4 cm = 2.1 inch
Power out 0.5 W (undistorted)
from Radiomuseum.org Model: Music Alarm Clock HR 5588 /00 - Philips France; Paris
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 170 x 73 x 110 mm / 6.7 x 2.9 x 4.3 inch
Net weight (2.2 lb = 1 kg) 0.565 kg / 1 lb 3.9 oz (1.244 lb)

Model page created by Jordi Cardona Serra. See "Data change" for further contributors.



All listed radios etc. from Philips France; Paris
Here you find 584 models, 521 with images and 322 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
