• Year
  • 1964/1965
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 30259

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries / 6/12 Volt
  • Power out
  • 1.35 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

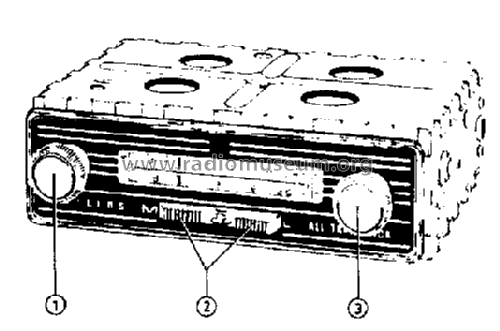

  • Model: N3X44T /19 /22 - Philips; Eindhoven tubes
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 184 x 54 x 155 mm / 7.2 x 2.1 x 6.1 inch
  • Notes
  • Transistoren: AF185, 3x AF127, AC126, OC 26
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.
