N5151 /50 /65

N5151 /50 /65; Philips; Eindhoven (ID = 765835) R-Player

N5151 /50 /65; Philips; Eindhoven (ID = 765836) R-Player

N5151 /50 /65; Philips; Eindhoven (ID = 765837) R-Player
N5151 /50 /65; Philips; Eindhoven (ID = 2477813) R-Player N5151 /50 /65; Philips; Eindhoven (ID = 2477816) R-Player
N5151 /50 /65; Philips; Eindhoven (ID = 2477815) R-Player N5151 /50 /65; Philips; Eindhoven (ID = 2477814) R-Player
N5151 /50 /65; Philips; Eindhoven (ID = 1650246) R-Player N5151 /50 /65; Philips; Eindhoven (ID = 765834) R-Player
N5151 /50 /65; Philips; Eindhoven (ID = 1685965) R-Player N5151 /50 /65; Philips; Eindhoven (ID = 2017835) R-Player
N5151 /50 /65; Philips; Eindhoven (ID = 2017836) R-Player N5151 /50 /65; Philips; Eindhoven (ID = 2017837) R-Player
Use red slider bar for more.
N5151 /50 /65; Philips; Eindhoven (ID = 2477813) R-Player
Philips; Eindhoven: N5151 /50 /65 [R-Player] ID = 2477813 1400x506
Select picture or schematic to display from thumbnails on the right and click for download.
For model N5151 /50 /65, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1979 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: N5151 /50 /65 - Philips; Eindhoven tubes
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 130 x 278 mm / 16.5 x 5.1 x 10.9 inch
Notes

Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.76 cm/s
Heads: 1 x record/playback, 1 x erase
Tape Type: type I, CrO2
Noise Reduction: B
Frequency Response: 40Hz to 14kHz  (CrO2 tape)
Signal to Noise Ratio: 56dB  (dolby B)
Wow and Flutter: 0.35%
Input: 30mV (line), 0.4mV (mic)
Output: 0.5V (line)

Net weight (2.2 lb = 1 kg) 4.1 kg / 9 lb 0.5 oz (9.031 lb)

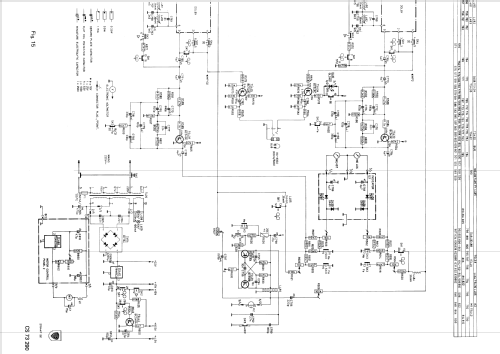

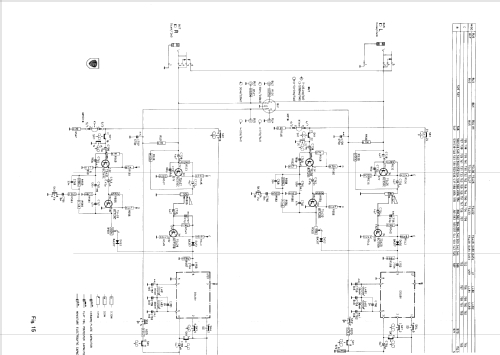

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
