• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1959/1960

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 30287

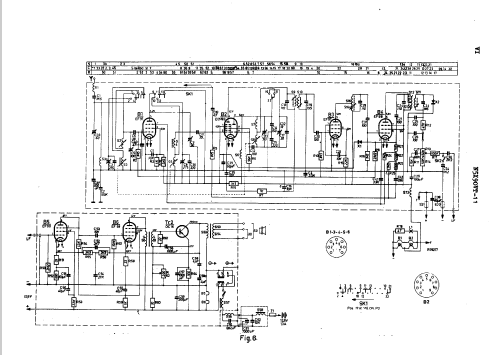

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF97 ECH83 EF97 EF98 EF98 EF98

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 12 Volt

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: N5X90VT [11 / 12] - Philips; Eindhoven tubes

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 175 x 54 x 140 mm / 6.9 x 2.1 x 5.5 inch

• Notes
• Transistor: OC16

• Price in first year of sale
• 2,350.00 PTE

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
