- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1980
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 240793

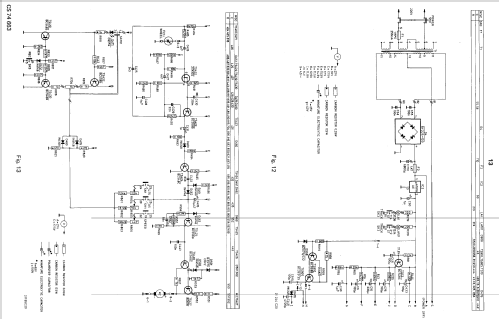

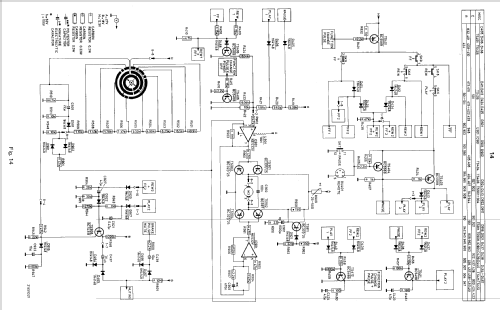

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 14
- Semiconductors
- BC327 BC337 BC547 BC548 BC548 BC549 BC550 BC556 BC558 BC637 BD677 BD678 BD681 2SK104 LM324 NE532
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: N7300 /15 - Philips; Eindhoven tubes
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 442 x 430 x 206 mm / 17.4 x 16.9 x 8.1 inch
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
