• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1969/1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108458

• • Brand: Deutsche Philips-Ges.

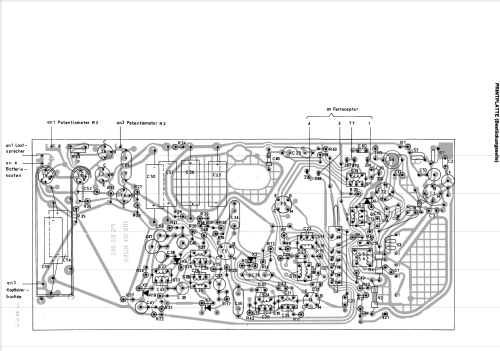

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF124 AF124 AF126 AF126 AF126 AC127 AC128 AC128 AC128 AC127

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 4× 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

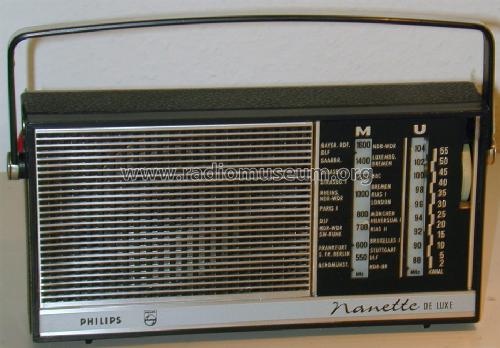

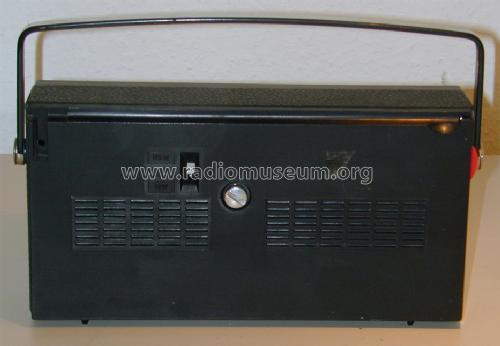

• Model: Nanette de Luxe 12RL193 - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 205 x 110 x 50 mm / 8.1 x 4.3 x 2 inch

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
