Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X UKW/FM 87.5-104 MHz

Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 397264) Radio

Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 397265) Radio

Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 397266) Radio

Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 397267) Radio

Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 133925) Radio

Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 133926) Radio

Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 133921) Radio

Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 133922) Radio

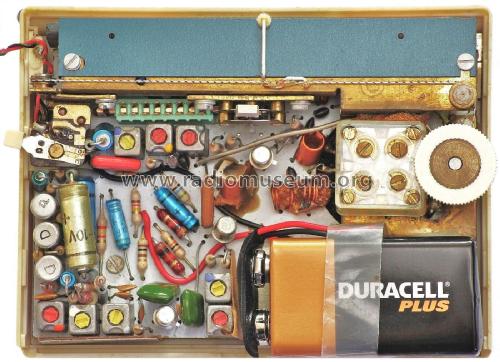

Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 1986959) Radio Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 1986962) Radio
Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 1986958) Radio Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 1986960) Radio

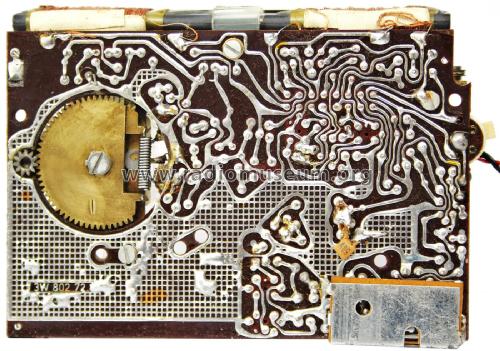

Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 1986961) Radio Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 1987021) Radio
Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 1055088) Radio Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 1055087) Radio
Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 64885) Radio Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 252132) Radio
Use red slider bar for more.
Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X; Philips; Eindhoven (ID = 1986959) Radio

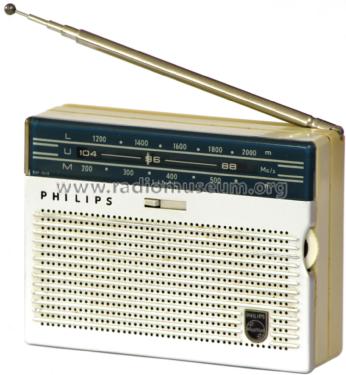

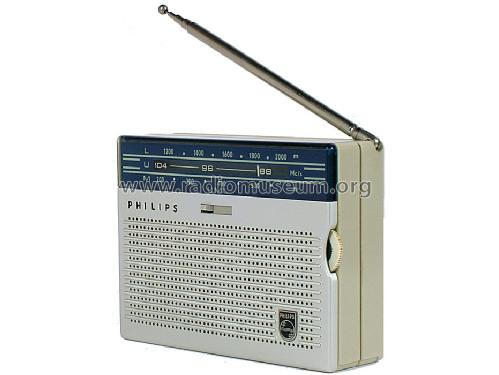

Philips; Eindhoven: Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X [Radio] ID = 1986959 1400x1515
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X UKW/FM 87.5-104 MHz, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: AF124 AF125 AF126 AF126 AF126 AC125 AC127 AC132
Main principle Superheterodyne (common); ZF/IF 452 or 460/6750 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.2 cm = 2 inch
Power out 0.07 W (unknown quality)
from Radiomuseum.org Model: Nanette L1W22T /02G /02L /02X /62G /62L /62X /71G /71L /71X [UKW/FM 87.5-104 MHz] - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 105 x 75 x 30 mm / 4.1 x 3 x 1.2 inch
Notes

Varianten/Variants:

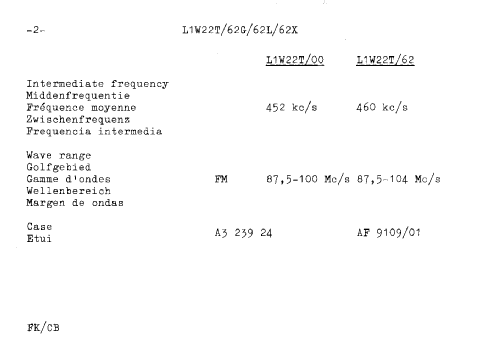

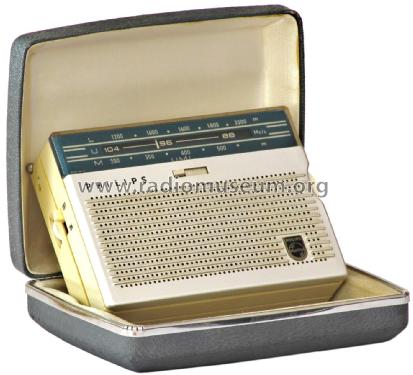

L1W22T /02: ZF 452kHz, Etui A323924

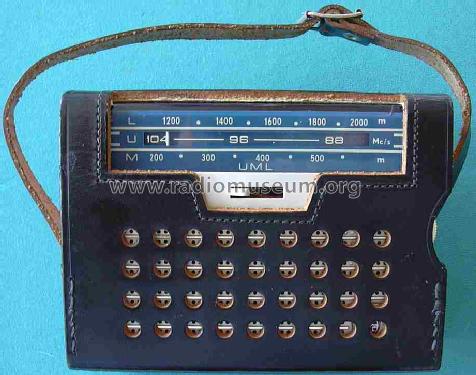

L1W22T /62: ZF 460kHz, Etui AF9109/01
L1W22T /71: ZF 452kHz, Etui AF9109/01

Weitere Varianten/Variants:

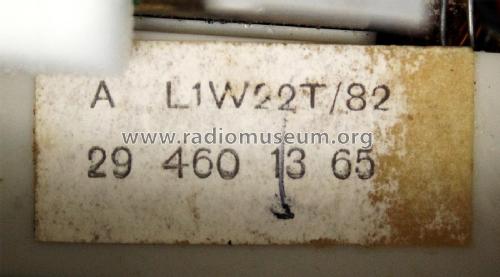

L1W22T /82: ZF 460kHz

Weitere Suffixe G, L, X kennzeichnen die Gehäusefarbe: G = grau, L = rot, X = blau.

Net weight (2.2 lb = 1 kg) 0.275 kg / 0 lb 9.7 oz (0.606 lb)
Price in first year of sale 1'195.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.

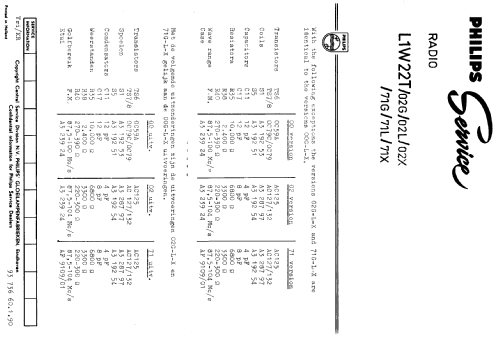

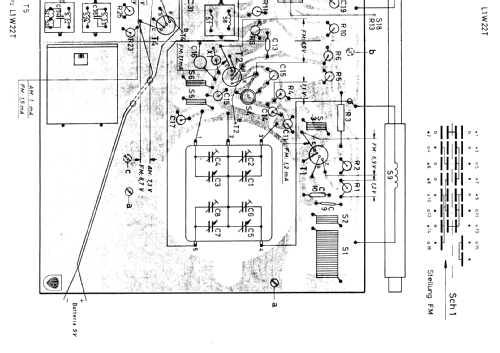

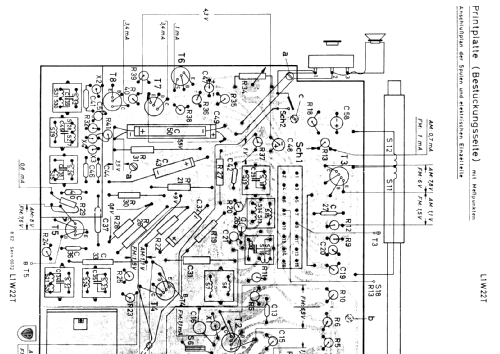

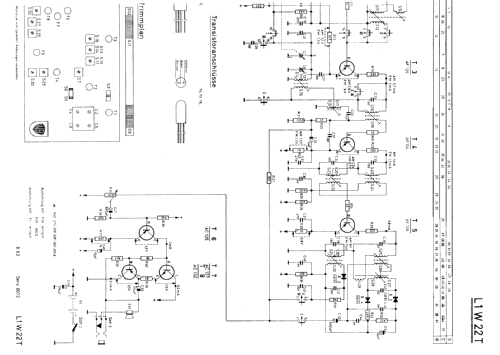

Literature/Schematics (1) Funk-Technik (FT) (19/1962, S. 651, 652 / Beschreibung, Daten, Schema)
