Népvevő 2499

Népvevő 2499; Philips; Budapest (ID = 1604428) Radio Népvevő 2499; Philips; Budapest (ID = 1604384) Radio
Népvevő 2499; Philips; Budapest (ID = 1600176) Radio Népvevő 2499; Philips; Budapest (ID = 1600177) Radio
Népvevő 2499; Philips; Budapest (ID = 1600327) Radio Népvevő 2499; Philips; Budapest (ID = 1600594) Radio
Népvevő 2499; Philips; Budapest (ID = 1602529) Radio Népvevő 2499; Philips; Budapest (ID = 1604903) Radio
Népvevő 2499; Philips; Budapest (ID = 1604904) Radio Népvevő 2499; Philips; Budapest (ID = 1604905) Radio
Use red slider bar for more.

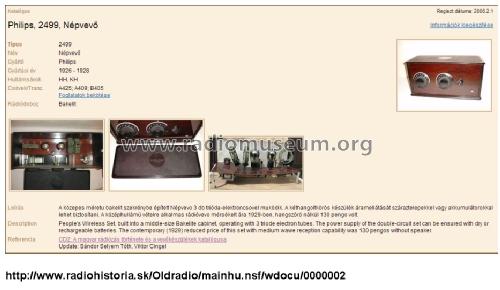

Népvevő 2499; Philips; Budapest (ID = 1604428) Radio
Philips; Budapest: Népvevő 2499 [Radio] ID = 1604428 933x531
Select picture or schematic to display from thumbnails on the right and click for download.
For model Népvevő 2499, Philips; Budapest:
Thanks for Mr.Kóger László, Székesfehérvár, Hungary and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Philips; Budapest
Year: 1927–1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: A415 A425 B405
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 4 & 90 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Népvevő 2499 - Philips; Budapest
Material Bakelite case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 420 x 210 x 180 mm / 16.5 x 8.3 x 7.1 inch
Notes

With speaker Philips 2016.

Price in first year of sale 150.00 Pengő
Literature/Schematics (2) Reich Rádió Katalógus, BP. 1930/31

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
