NG2484

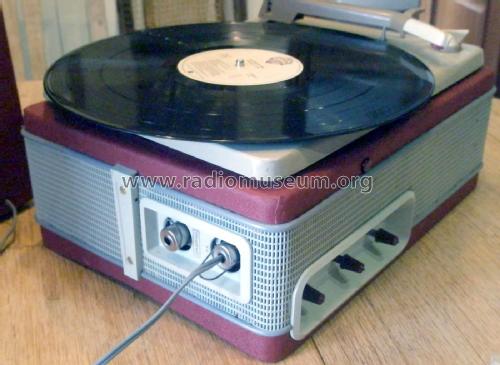

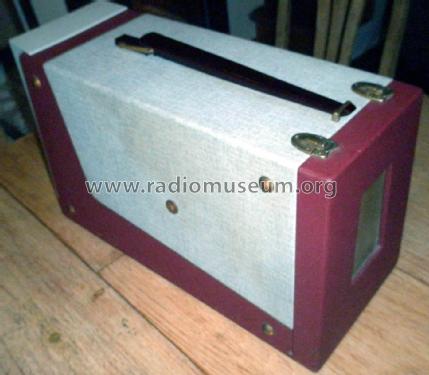

NG2484; Philips France; (ID = 2385263) R-Player
NG2484; Philips France; (ID = 2385264) R-Player NG2484; Philips France; (ID = 2385281) R-Player
NG2484; Philips France; (ID = 2385268) R-Player NG2484; Philips France; (ID = 2385271) R-Player
NG2484; Philips France; (ID = 2385265) R-Player NG2484; Philips France; (ID = 2385266) R-Player
NG2484; Philips France; (ID = 2385267) R-Player NG2484; Philips France; (ID = 2385270) R-Player
NG2484; Philips France; (ID = 2385273) R-Player NG2484; Philips France; (ID = 2385280) R-Player
Use red slider bar for more.
NG2484; Philips France; (ID = 2385264) R-Player
Philips France;: NG2484 [R-Player] ID = 2385264 1400x870
Select picture or schematic to display from thumbnails on the right and click for download.
For model NG2484, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1958 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: ECL82 ECL82 EZ80
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110-240 Volt

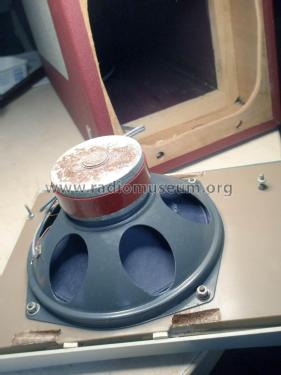

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: NG2484 - Philips France; Paris
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 520 x 320 x 200 mm / 20.5 x 12.6 x 7.9 inch
Notes

Cartridge Philips AG3015.

Connector for external Stereo Amplifier

Transformerless amplifier with 800 ohm speaker

Net weight (2.2 lb = 1 kg) 11.2 kg / 24 lb 10.7 oz (24.67 lb)
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Jacky Parmentier. See "Data change" for further contributors.
