• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1964 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 333179

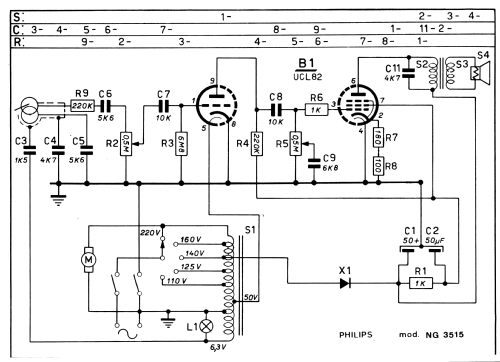

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• UCL82

• Number of Transistors

• Semiconductors
• unknown_diode

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: NG3515 - Philips; Eindhoven tubes

• Notes

• Simile al modello NG 3509, ma con in più il controllo di tono.

• Mentioned in
• -- Schematic (Scuola Radio Elettra, Corso Radio Stereo, 1964/65 Schemario/Abaco)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
