Normál 5

Normál 5; Philips; Budapest (ID = 2340486) Radio

Normál 5; Philips; Budapest (ID = 2340487) Radio

Normál 5; Philips; Budapest (ID = 2340488) Radio

Normál 5; Philips; Budapest (ID = 2340489) Radio
Normál 5; Philips; Budapest (ID = 2340483) Radio Normál 5; Philips; Budapest (ID = 2340484) Radio
Normál 5; Philips; Budapest (ID = 2340485) Radio
Use red slider bar for more.
Normál 5; Philips; Budapest (ID = 2340483) Radio

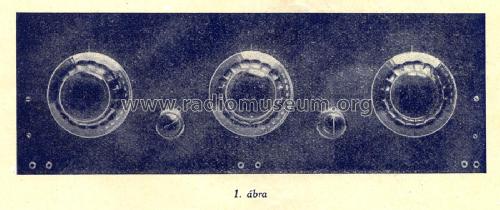

Philips; Budapest: Normál 5 [Radio] ID = 2340483 1400x588
Select picture or schematic to display from thumbnails on the right and click for download.
For model Normál 5, Philips; Budapest:
Philips Csoda 3 kapcsolások. - Perneky Sándor - Rádiómúzeum Alapítvány, Verőce, Hungary, radiomuzeum.hu

Country:  Hungary
Manufacturer / Brand:  Philips; Budapest
Year: 1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: A415 A415 A415 B409 B405
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Normál 5 - Philips; Budapest
Material Various materials
Shape Chassis only or for «building in»
Dimensions (WHD) 560 x 200 x 220 mm / 22 x 7.9 x 8.7 inch
Price in first year of sale 248.17 Pengő
Mentioned in Philips Csoda 3 kapcsolások

Model page created by Sándor Perneky. See "Data change" for further contributors.



All listed radios etc. from Philips; Budapest
Here you find 213 models, 209 with images and 115 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
