• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1951–1954

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 218941

• Number of Tubes
• 1

• Valves / Tubes
• EZ2 4687

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Ohmmeter 3E 930 01.0H - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 240 x 290 x 190 mm / 9.4 x 11.4 x 7.5 inch

• Notes

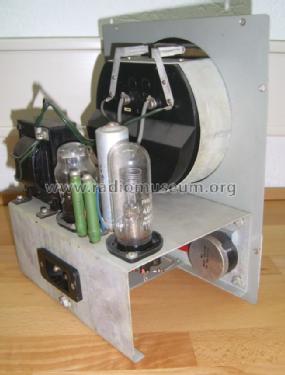

• Ohmmeter mit Gleichrichterröhre EZ2 und Spannungsstabilisierungsröhre 4687. Messbereiche Ohm x1, Ohm x10 und Ohm x100. Max. Messwert 1000 Ohm. Kleinste Auflösung 0,01 Ohm (im Bereich x1). Poti für Nullabgleich. Buchsen 4mm-Banane.

• Net weight (2.2 lb = 1 kg)
• 5.2 kg / 11 lb 7.3 oz (11.454 lb)

• Author
• Model page created by Thomas Jennen. See "Data change" for further contributors.
