Oscilloscope PM3209

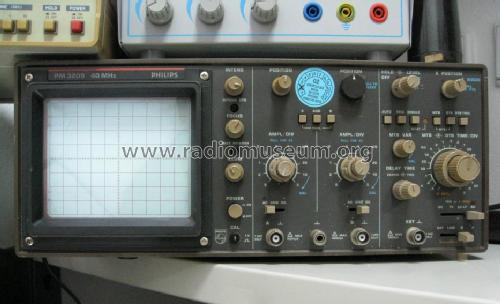

Oscilloscope PM3209; Philips; Eindhoven (ID = 1455683) Equipment Oscilloscope PM3209; Philips; Eindhoven (ID = 856347) Equipment
Oscilloscope PM3209; Philips; Eindhoven (ID = 856348) Equipment
Use red slider bar for more.
Oscilloscope PM3209; Philips; Eindhoven (ID = 1455683) Equipment
Philips; Eindhoven: Oscilloscope PM3209 [Equipment] ID = 1455683 930x388
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscilloscope PM3209, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1985 ?? Category: Service- or Lab Equipment
schematic requested
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oscilloscope PM3209 - Philips; Eindhoven tubes
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 390 x 145 x 435 mm / 15.4 x 5.7 x 17.1 inch
Notes Philips Oscilloscope PM3209;
2 x 40 MHz.
Source of data - - Data from my own collection

Model page created by Gil Silva. See "Data change" for further contributors.
