• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30317

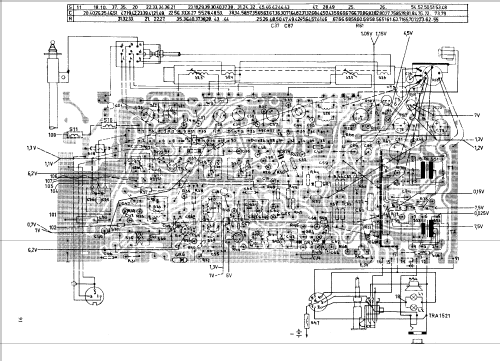

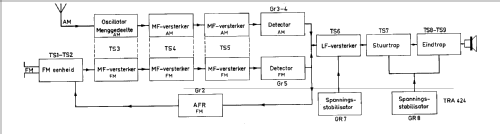

Click on the schematic thumbnail to request the schematic as a free document.

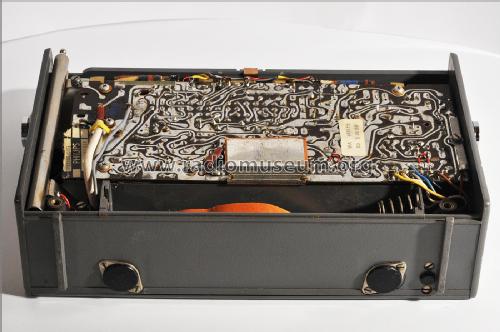

• Number of Transistors
• 9

• Semiconductors
• AF121 AF124 AF126 AF126 AF126 AC125 AC126 AC128 AC128 AA119 BA100 BA102 OA90

• Main principle
• Superheterodyne (common); ZF/IF 452 or 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 7,5; 6/12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: P3X53T /00G /00R /19G /19R - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 230 x 140 x 70 mm / 9.1 x 5.5 x 2.8 inch

• Notes

• Ausführung -/00: FM-Bereich = 87,5 - 108 MHz, ZF = 452 kHz
  Ausführung -/19: FM-Bereich = 87,5 - 104 MHz, ZF = 460 kHz.

  Auch Betrieb 6/12V im Auto möglich.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.

• Other Models

• Here you find 5233 models, 4365 with images and 3446 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
