Autoportable P5X44T /03 /16

Autoportable P5X44T /03 /16; Philips; Eindhoven (ID = 35377) Radio

Autoportable P5X44T /03 /16; Philips; Eindhoven (ID = 35378) Radio

Autoportable P5X44T /03 /16; Philips; Eindhoven (ID = 35379) Radio

Autoportable P5X44T /03 /16; Philips; Eindhoven (ID = 35380) Radio

Autoportable P5X44T /03 /16; Philips; Eindhoven (ID = 35381) Radio

Autoportable P5X44T /03 /16; Philips; Eindhoven (ID = 35382) Radio

Autoportable P5X44T /03 /16; Philips; Eindhoven (ID = 35383) Radio

Autoportable P5X44T /03 /16; Philips; Eindhoven (ID = 35376) Radio
Autoportable P5X44T /03 /16; Philips; Eindhoven (ID = 115567) Radio
Use red slider bar for more.
Autoportable P5X44T /03 /16; Philips; Eindhoven (ID = 115567) Radio

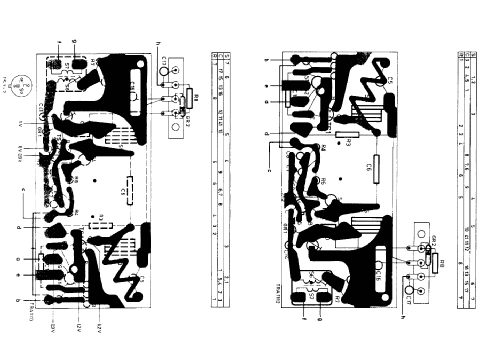

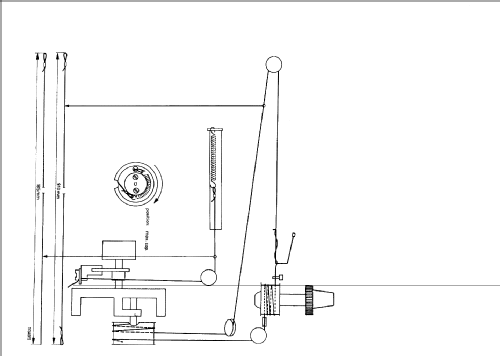

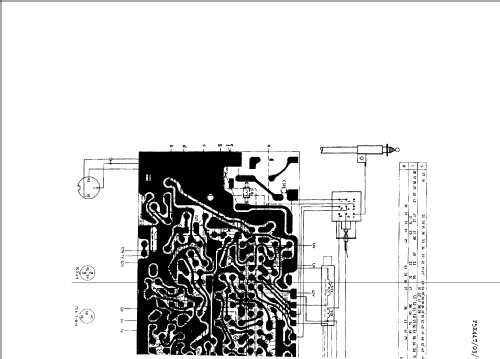

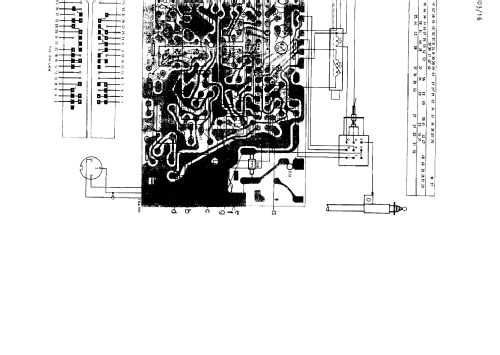

Philips; Eindhoven: Autoportable P5X44T /03 /16 [Radio] ID = 115567 600x505
Select picture or schematic to display from thumbnails on the right and click for download.
For model Autoportable P5X44T /03 /16, Philips; Eindhoven (tubes international!); Miniwatt:
service manual

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF124 AF125 AF126 AF126 AF126 AC125 AC126 AC128 AC128 AA119 BA100 BA102 OA90 1,4St1
Main principle Superheterodyne (common); ZF/IF 452 or 460/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 5 x 1,5; 6/12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Autoportable P5X44T /03 /16 - Philips; Eindhoven tubes
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 306 x 177 x 87 mm / 12 x 7 x 3.4 inch
Notes

7,5V Batteriebetrieb, 6/12V bei Betrieb im Auto.

Ausführung /03:  ZF = 452 kHz
Ausführung /16:  ZF = 460 kHz.

Mentioned in -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
