• Year
  • 1965/1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 26112
    • Brand: Deutsche Philips-Ges.

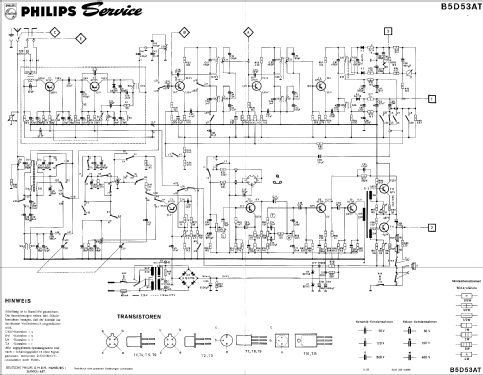

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 11
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 17 cm = 6.7 inch
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

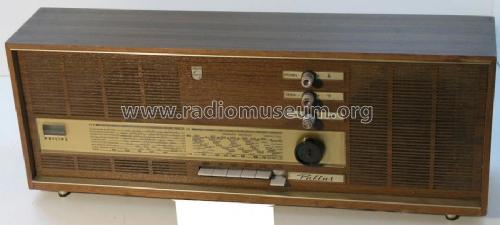

  • Model: Pallas B5D53AT - Philips Radios - Deutschland
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 570 x 200 x 135 mm / 22.4 x 7.9 x 5.3 inch
  • Notes
  • Technische Daten wie Sagitta B4D53AT, jedoch getrennte AM/FM-Abstimmung mit Doppelknopf.
  • Net weight (2.2 lb = 1 kg)
  • 4.7 kg / 10 lb 5.6 oz (10.352 lb)
  • External source of data
  • erb
