- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1965 ??
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 292839
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 30
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

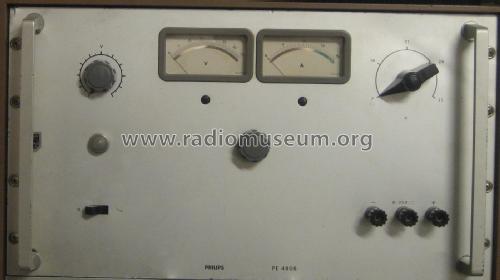

- Model: PE4808 /01 - Philips; Eindhoven tubes
- Shape
- Rack
- Dimensions (WHD)
- 482 x 266 x 520 mm / 19 x 10.5 x 20.5 inch
- Notes
-
Philips Labor-Netzteil PE4808 /01
DC-Ausgangsspannungen geregelt:
Max. 35 V, kontinuierlich einstellbar von 0...7 V, 7...14 V, 14...21 V, 21...28 V, 28 ... 35 V (umschaltbar), bei max. 20 A Ausgangsstrom.Jeder Halbleiter-Typ ist nur einmal gelistet.
- Net weight (2.2 lb = 1 kg)
- 47 kg / 103 lb 8.4 oz (103.524 lb)
- Mentioned in
- - - Manufacturers Literature (Handbuch)
- Author
- Model page created by Stefan Müller. See "Data change" for further contributors.
