Philetta 11RL260

Philetta 11RL260; Philips France; (ID = 1482652) Radio

Philetta 11RL260; Philips France; (ID = 1482653) Radio

Philetta 11RL260; Philips France; (ID = 1482655) Radio

Philetta 11RL260; Philips France; (ID = 1482656) Radio

Philetta 11RL260; Philips France; (ID = 1482657) Radio

Philetta 11RL260; Philips France; (ID = 1482658) Radio

Philetta 11RL260; Philips France; (ID = 1482659) Radio

Philetta 11RL260; Philips France; (ID = 1482660) Radio

Philetta 11RL260; Philips France; (ID = 1482662) Radio
Philetta 11RL260; Philips France; (ID = 1482605) Radio
Use red slider bar for more.
Philetta 11RL260; Philips France; (ID = 1482605) Radio

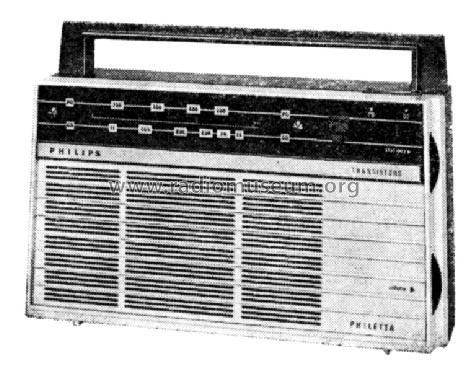

Philips France;: Philetta 11RL260 [Radio] ID = 1482605 765x605
Select picture or schematic to display from thumbnails on the right and click for download.
For model Philetta 11RL260, Philips France; Paris:
Aus Philips Service-Unterlagen

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1966–1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF127 AF127 AC127 AC126 AC127 AC132
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 & 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.1 cm = 4 inch
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Philetta 11RL260 - Philips France; Paris
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

Kleines Transistor-Kofferradio mit Mittelwelle und Langwelle für den französischen Markt.

Mentioned in -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.



All listed radios etc. from Philips France; Paris
Here you find 584 models, 521 with images and 322 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
