Philetta B2D53A grau

Philetta B2D53A; Philips Radios - (ID = 334123) Radio

Philetta B2D53A; Philips Radios - (ID = 334126) Radio

Philetta B2D53A; Philips Radios - (ID = 334128) Radio

Philetta B2D53A; Philips Radios - (ID = 334131) Radio

Philetta B2D53A; Philips Radios - (ID = 334133) Radio

Philetta B2D53A; Philips Radios - (ID = 334136) Radio

Philetta B2D53A; Philips Radios - (ID = 334138) Radio
Philetta B2D53A; Philips Radios - (ID = 487673) Radio Philetta B2D53A; Philips Radios - (ID = 2454011) Radio
Philetta B2D53A; Philips Radios - (ID = 1458132) Radio Philetta B2D53A; Philips Radios - (ID = 415049) Radio
Philetta B2D53A; Philips Radios - (ID = 415047) Radio Philetta B2D53A; Philips Radios - (ID = 487674) Radio
Philetta B2D53A; Philips Radios - (ID = 105802) Radio Philetta B2D53A; Philips Radios - (ID = 105803) Radio
Philetta B2D53A; Philips Radios - (ID = 474258) Radio Philetta B2D53A; Philips Radios - (ID = 1298964) Radio
Use red slider bar for more.
Philetta B2D53A; Philips Radios - (ID = 487673) Radio
Philips Radios -: Philetta B2D53A [Radio] ID = 487673 915x683
Select picture or schematic to display from thumbnails on the right and click for download.
For model Philetta B2D53A grau, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECC85 ECH81 EBF89 ECL86
Semiconductors (the count is only for transistors) AA119 AA119 B250C75
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Philetta B2D53A [grau] - Philips Radios - Deutschland
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 318 x 173 x 162 mm / 12.5 x 6.8 x 6.4 inch
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Source of data Handbuch VDRG 1965/1966

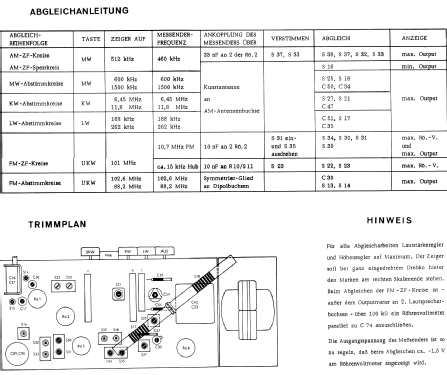

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
