Philetta B2D53A beige

Philetta B2D53A; Philips Radios - (ID = 67317) Radio

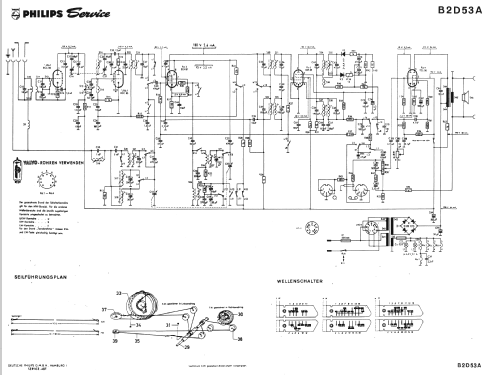

Philetta B2D53A; Philips Radios - (ID = 67318) Radio

Philetta B2D53A; Philips Radios - (ID = 67319) Radio

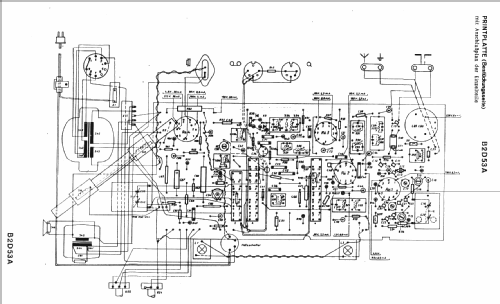

Philetta B2D53A; Philips Radios - (ID = 67320) Radio

Philetta B2D53A; Philips Radios - (ID = 67316) Radio
Philetta B2D53A; Philips Radios - (ID = 35550) Radio Philetta B2D53A; Philips Radios - (ID = 35553) Radio
Philetta B2D53A; Philips Radios - (ID = 35551) Radio Philetta B2D53A; Philips Radios - (ID = 35552) Radio
Philetta B2D53A; Philips Radios - (ID = 162602) Radio Philetta B2D53A; Philips Radios - (ID = 162603) Radio
Philetta B2D53A; Philips Radios - (ID = 217543) Radio Philetta B2D53A; Philips Radios - (ID = 1088816) Radio
Philetta B2D53A; Philips Radios - (ID = 1088817) Radio Philetta B2D53A; Philips Radios - (ID = 1088818) Radio
Use red slider bar for more.
Philetta B2D53A; Philips Radios - (ID = 35550) Radio
Philips Radios -: Philetta B2D53A [Radio] ID = 35550 933x617
Select picture or schematic to display from thumbnails on the right and click for download.
For model Philetta B2D53A beige, Philips Radios - Deutschland:
D_Philips_1965/66_Philetta B2D53A_6 Kreis Super_ Wellenbereiche KW LW MW UKW

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECC85 ECH81 EBF89 ECL86
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Philetta B2D53A [beige] - Philips Radios - Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 318 x 173 x 162 mm / 12.5 x 6.8 x 6.4 inch
Notes Dioden 2× AA119.
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
External source of data erb
Source of data Handbuch VDRG 1965/1966
