• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75883

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF195 BF195 BF195 BF195 BF194 BF194 BC149 BC148 AC126 AC187 AC188 AA119 AA119 AA119 AA119 BZY94 Selengleichrichter

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

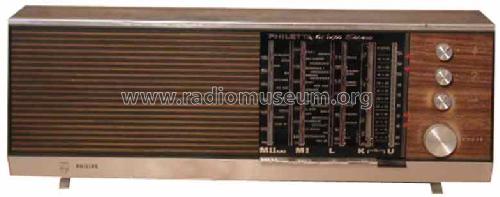

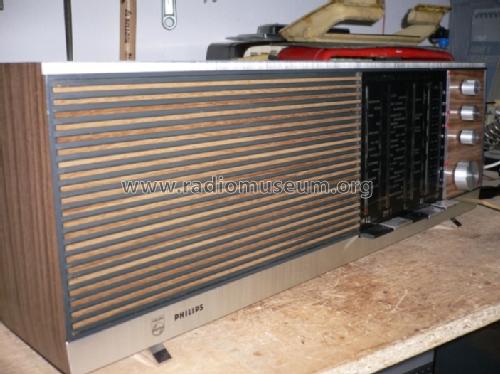

• Model: Philetta de luxe 380 12RB380 /04E /14E - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 450 x 175 x 125 mm / 17.7 x 6.9 x 4.9 inch

• Notes

• Mittelwelle unterteilt: MW I 517-1430 kHz, MW II 1400-1620 kHz (Europa-Band).

  Die Service-Anleitung nennt abweichend 430 mm als Gehäusebreite.

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
