For model Philetta Euro Philetta 280 12RB280, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1968–1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: BF195 BF195 BF195 BF195 BF194 BF194 BC148 BC149 AC126 AC187 AC188
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     9 FM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Philetta Euro Philetta 280 12RB280 - Philips Radios - Deutschland
Material Plastics (no bakelite or catalin)

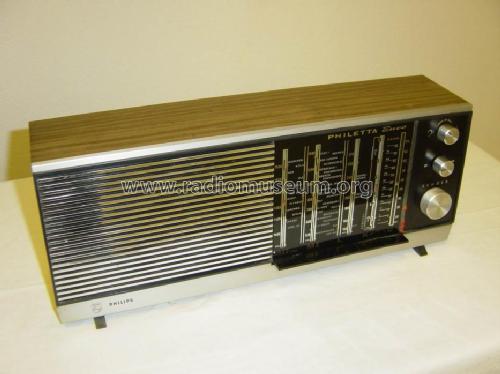

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 430 x 175 x 105 mm / 16.9 x 6.9 x 4.1 inch
Notes Wellenbereiche: LW, MW1 (520-1400 kHz), MW2 (1400-1600 kHz), KW, UKW.
Gehäuse: altweiss oder grau oder nussbaumfarben.
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
External source of data erb
Source of data Handbuch VDRG 1968/1969
Literature/Schematics (1) -- Original-techn. papers.
