• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1966

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 274604

• • Brand: Deutsche Philips-Ges.

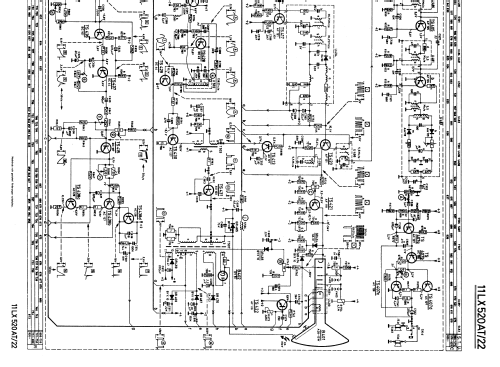

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• DY51 A28-13W

• Number of Transistors
• 41

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Philetta Luxus Alltransistor 11LX520AT /22 Ch= T2 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Notes

• VHF Kanalwähler 4822 118 00292

  UHF Kanalwähler HA 362 58 / 4822 109 00382

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
