• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25690

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EBF89 ECL86 EM84

• Number of Transistors

• Semiconductors
• AA119 AA119 B250C75

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

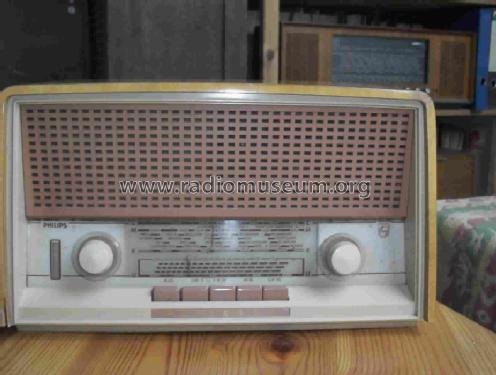

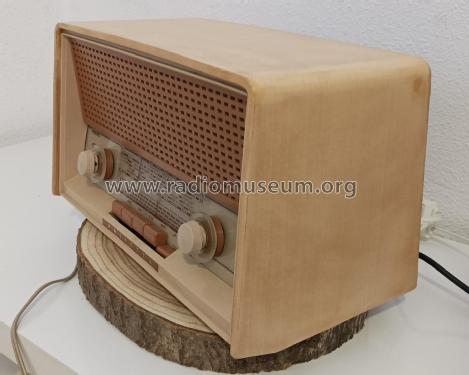

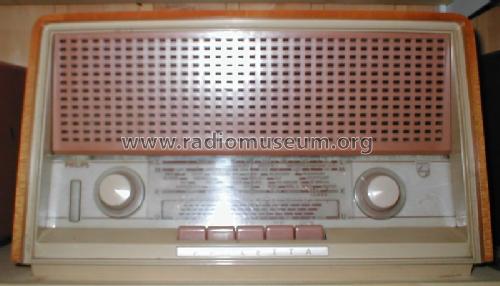

• Model: Philetta modern B3D33A [Tasten braun] - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 320 x 185 x 180 mm / 12.6 x 7.3 x 7.1 inch

• Notes

• UKW: 87,5 - 104 MHz

  Das Schema benennt den Gleichrichter irrtümlich als E250C75, obwohl ein Brücken-Gl. gezeichnet ist.

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Price in first year of sale
• 340.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965
