Philette 964AS

Philette 964AS; Philips akc. spol., (ID = 39099) Radio

Philette 964AS; Philips akc. spol., (ID = 39101) Radio
Philette 964AS; Philips akc. spol., (ID = 2105620) Radio Philette 964AS; Philips akc. spol., (ID = 2105613) Radio
Philette 964AS; Philips akc. spol., (ID = 2105612) Radio Philette 964AS; Philips akc. spol., (ID = 2105618) Radio
Philette 964AS; Philips akc. spol., (ID = 219912) Radio Philette 964AS; Philips akc. spol., (ID = 219914) Radio
Philette 964AS; Philips akc. spol., (ID = 219913) Radio Philette 964AS; Philips akc. spol., (ID = 39094) Radio
Philette 964AS; Philips akc. spol., (ID = 39096) Radio Philette 964AS; Philips akc. spol., (ID = 39097) Radio
Use red slider bar for more.
Philette 964AS; Philips akc. spol., (ID = 2105620) Radio
Philips akc. spol.,: Philette 964AS [Radio] ID = 2105620 930x698
Select picture or schematic to display from thumbnails on the right and click for download.
For model Philette 964AS, Philips akc. spol., Praha-Hloubetin

Country:  Czechoslovakia
Manufacturer / Brand:  Philips akc. spol., Praha-Hloubetin
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: E446 C443 1801
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: Philette 964AS - Philips akc. spol., Praha-
Material Bakelite case
Dimensions (WHD) 298 x 250 x 145 mm / 11.7 x 9.8 x 5.7 inch
Notes Import Tschechoslowakei in die Schweiz (wahrsch. nur Sammler). Das Gerät ist in der tschechischen Literatur für 1929 geführt. Da gibt es die C443 zwar neu, doch die E446 erscheint erst 1933 in Geräten (angekündigt 1932). EE
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
External source of data E. Erb 3-907007-36-0


All listed radios etc. from Philips akc. spol., Praha-Hloubetin
Here you find 124 models, 94 with images and 102 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips akc. spol.,: Philette 964AS
Threads: 1 | Posts: 3
Hits: 506     Replies: 2
philips: Philips 964 AS on-off switch missing
Meyer Rochwerger
11.Jul.18
  1

Dear friends
I am completing some repairs on a Philips 964 AS radio.

Someone made a rough adaptation of a switch to perform the on / off function. In the schematic there is actually a switch. But I did not find the place where it should be.

I did an exhaustive internet search for photos or clues to see where this switch goes ... but I did not succeed.


If any of you have a radio like this model, please help me to solve that "mistery"

Greetings,

Meyer

Bernhard Nagel
12.Jul.18
  2

Dear Meyer,

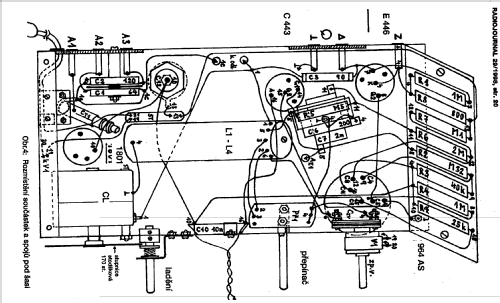

when checking the documents, the bottom chassis wiring shows the on-off switch combined with the reaction control at the top right. It has nr. 19, 20 which corresponds with the same nr. in the left bottom where the mains lead (power cord) is located. Follow the red line.

So the missing switch should be V1. Please check if it is still present, it should be situated in front of the chassis. Unfortunately we don't have a picture at the model page showing this chassis part.

Kind regards
Bernhard

Meyer Rochwerger
12.Jul.18
  3

Dear Bernhard.

You're right ...

The problem is that in the chassis that I have in hand is missing the "drum" where the switch should be.

As I had never worked on that model before, I did not know where the switch would be once it had been removed.


I'll improvise a solution with a micro switch. It will not be so bad.


Thank you for your precious help.

Meyer
